YANGZHOU, CHINA – July 3, 2026 — As high-temperature industrial heating equipment faces frequent tube burnout, scaling and short service life, 310S stainless steel heating tubes have become the top choice for heat treatment, boiler, oven and petrochemical heating systems. Our factory releases a full technical breakdown of 310S heater tube strengths to help global buyers select long-life high-temperature heating elements.
310S (0Cr25Ni20) is a premium heat-resistant austenitic stainless steel with 24–26% chromium and 19–22% nickel. Compared with ordinary 304, 316L heating tubes, it solves the pain points of low temperature resistance, easy oxidation and thermal deformation under continuous high-heat working conditions. Below are its 7 irreplaceable core advantages for industrial heating:
1. Ultra-High Continuous Temperature Resistance
310S heating tubes support continuous long-term operation at 1050–1150°C, and withstand intermittent peak temperature up to 1200°C. Standard 304 tubes fail above 650°C, while 316L loses structural strength over 870°C. For sintering furnaces, ceramic kilns and high-temperature reaction vessels, 310S maintains stable shape without bending or melting under long-term extreme heat.
2. Excellent Anti-Oxidation & Anti-Scaling Performance
High chromium content forms a dense stable Cr₂O₃ protective film on the tube surface, blocking oxygen penetration. Even under cyclic heating & cooling, the tube rarely generates thick oxide scales that block heat transfer. It greatly reduces frequent cleaning shutdowns caused by scaling and improves heating efficiency by 10–18%.
3. Superior High-Temperature Creep Strength
High nickel stabilizes the austenite structure, so 310S retains over 70% of room-temperature tensile strength at 800–1000°C. Under long-term high heat and pressure, the tube resists slow creep deformation, avoiding tube rupture and leakage in steam boilers, hot air circulation heaters and pressure vessel heating modules.
4. Good Thermal Shock Resistance for Frequent Start-Stop Equipment
Low thermal expansion coefficient adapts to rapid temperature rise and drop. Furnaces, drying lines and baking equipment with daily startup/shutdown cycles will not crack or crack the tube wall after years of operation. It effectively cuts maintenance costs caused by thermal fatigue damage.
5. Low Carbon Formula for Perfect Weldability & Anti-Intergranular Corrosion
The letter “S” in 310S stands for low carbon (max 0.08% C). After laser welding or argon arc welding, carbide precipitation is greatly suppressed, no post-weld heat treatment required. Weld joints keep consistent corrosion resistance, suitable for customized bent heating tubes, flanged heating rods and split furnace heating assemblies.
6. Strong Resistance to Carburization & Weak Acid Corrosion
In carbon-rich furnace atmosphere, oil fume, sulfur-containing flue gas and weak acid steam environments, 310S avoids surface carburization brittleness. Widely applied in heat treatment quenching furnaces, chemical reaction heaters, food high-temperature baking lines and waste gas incineration heating equipment.
7. Lower Total Life-Cycle Cost (Longer Service Life)
Though 310S raw material cost is 25–40% higher than 316L, its service life is extended by 30–50% under equal high-temperature working conditions. Less tube replacement, fewer production downtime losses and lower labor maintenance fees, bringing obvious comprehensive cost advantages to medium and large industrial manufacturers.
“Many overseas clients used to replace heating tubes every 1–3 months with 304 material; after switching to our customized 310S heating tubes, replacement cycles extend to 8–12 months,” said our technical director. “For high-temperature continuous production lines, 310S heating elements can reduce equipment downtime loss by over 40% annually.”
Main Application Scenarios of 310S Heating Tubes
Industrial furnace, ceramic kiln, powder metallurgy sintering equipment
Petrochemical high-temperature reactors, boiler superheater heating parts
Food high-temperature baking, plastic hot melting, asphalt heating equipment
Waste gas incinerator, hot air circulation oven, heat treatment quenching furnace
Explosion-proof high-temperature heating modules for mining and chemical plants

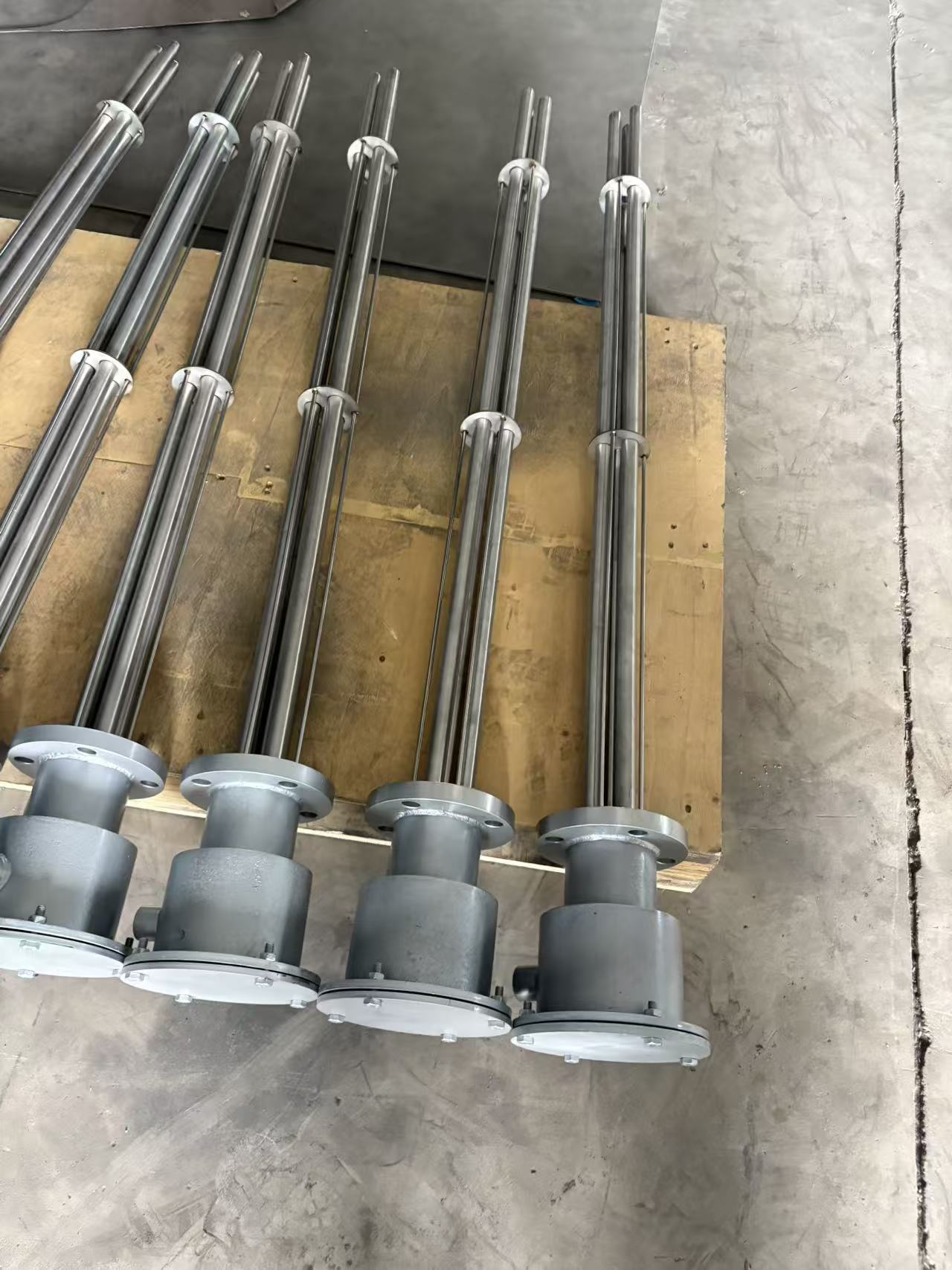

Our factory provides customized 310S stainless steel heating tubes: seamless tube body, imported BGH heating wire inside, high-purity magnesium oxide insulation, complete CT4/BT4 explosion-proof certification, size, power, flange and bending shape customizable. All products pass hydrostatic test, PMI material inspection and aging test before delivery, with EN 10204 3.1 material certificate support.
For technical parameter sheets, free sample testing and customized quotation, contact our sales team via email or WhatsApp on the website.
