Large Industrial Cast Aluminum Electric Heating Platform
Our heavy-duty large-size electric heating platform is engineered for high-load, large-area industrial heating, thermal experiment and mass production processes. Different from small laboratory heating tables, this full-size heating workbench adopts thickened 6061 aviation aluminum alloy platform surface and integral cast aluminum heating plates as core heating components, equipped with professional multi-point zoning temperature control system to deliver ultra-stable, even heating across the entire working surface.
Built with heavy steel frame, load-bearing support and independent temperature control cabinet, this large heating platform can withstand heavy molds, composite blanks, large test samples and continuous long-hour production operation. Widely used in composite material forming, mold preheating, thermal performance testing, rubber curing, electronic component aging test, new material research and other industrial scenarios that require wide-range precise heating.
1. Thickened 6061 Aluminum Alloy Working Platform
- Entire work surface made of high-strength 6061 T6 aluminum plate, excellent thermal conductivity, flat & deformation-resistant under long-time high temperature
- Good corrosion resistance, easy to clean, scratch-proof, high load-bearing capacity for large workpieces
- Uniform heat conduction eliminates local cold spots on large heating area

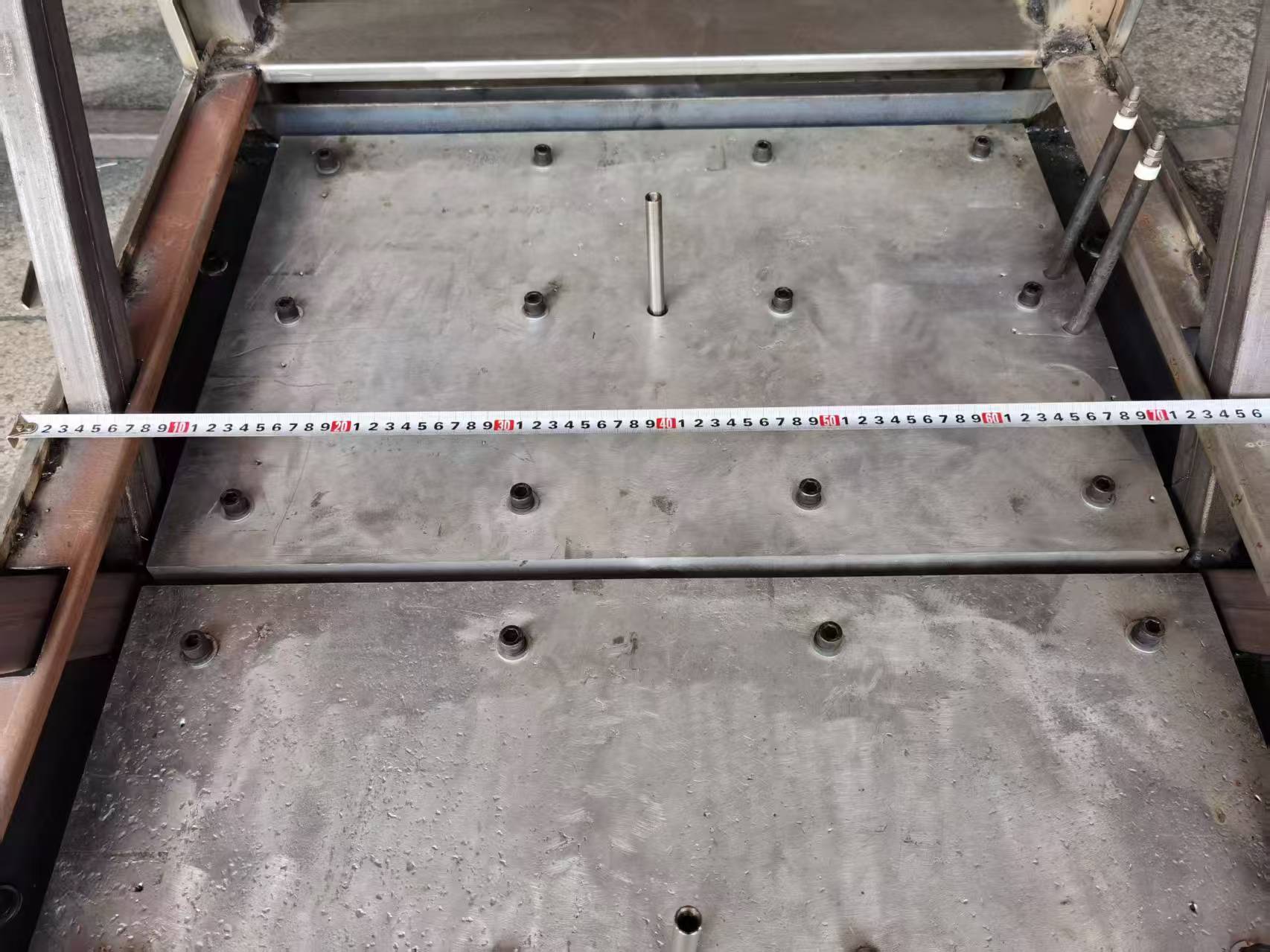

2. Integral Cast Aluminum Heating Plate Heating Core
- Modular cast aluminum heating plates embedded under the platform, one-piece casting structure
- Fast heat transfer, low thermal loss, long service life, anti-burning & anti-leakage
- Fully attached to 6061 aluminum panel to ensure consistent surface temperature
3. Multi-Point & Multi-Zone Independent Temperature Control System
- Multi-point PT100 temperature sensors distributed evenly on the large platform surface
- Each heating zone controlled separately by independent PID temperature controller + SCR power regulator
- Adjustable temperature & power for individual zones, temperature deviation ≤±1℃ over the whole platform
- Supports upper/lower temperature limit alarm, overheat protection, automatic constant temperature lock

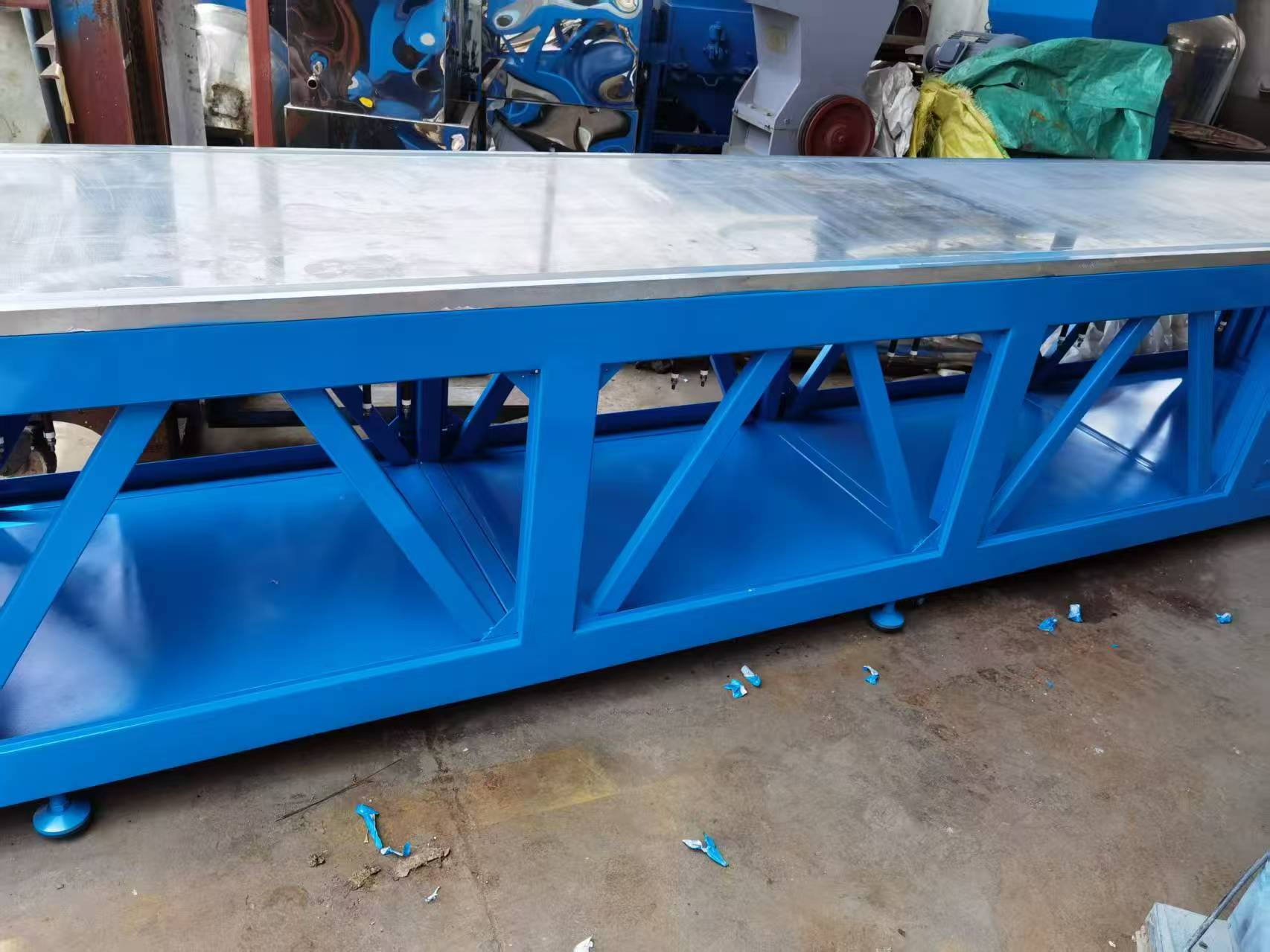

4. Heavy-Duty Industrial Overall Structure
- Thick carbon steel welded frame, anti-vibration design, heavy load bearing up to tons

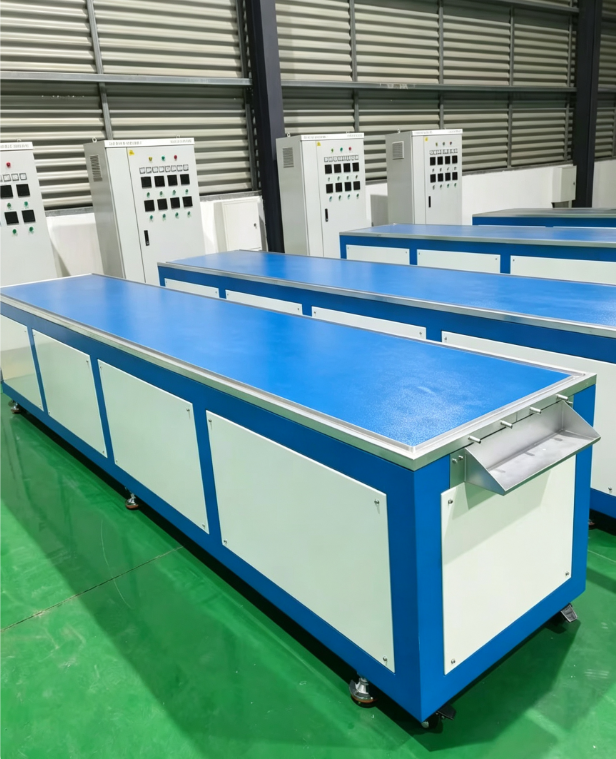

- Separate electrical control cabinet, heat dissipation structure for long-time non-stop operation
- Customizable overall length, width, height, total power and heating zones according to customer workshop demands
- Optional moving casters, leveling foot pads, heat insulation outer cladding for energy saving
5. Wide Temperature Range & Stable Continuous Operation
- Standard temperature range: room temperature ~ 450℃, customizable ultra-high temperature version
- Designed for 24-hour uninterrupted industrial operation, low failure rate, easy maintenance
