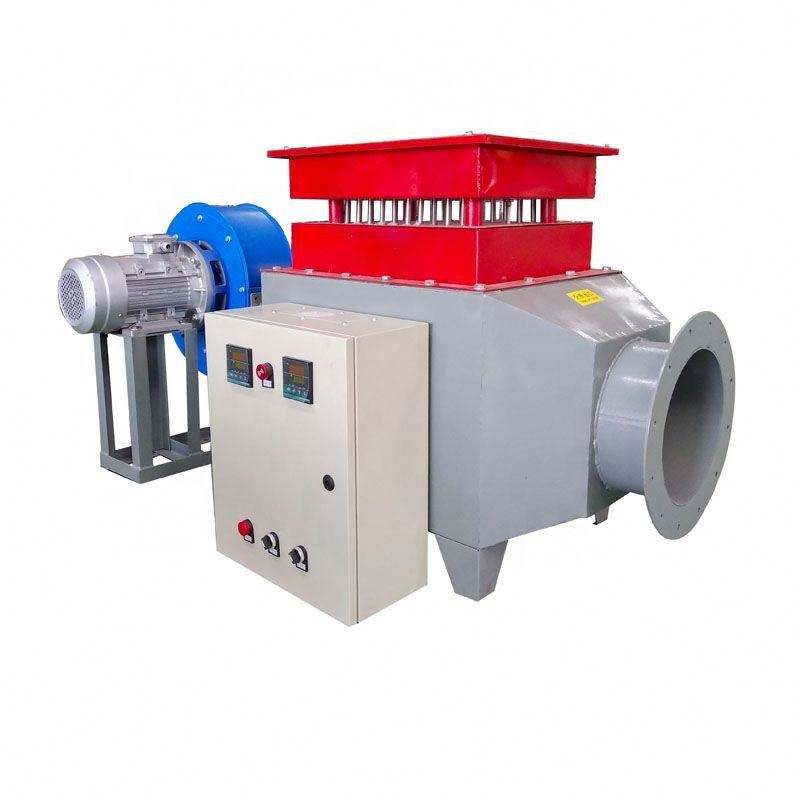

Heating Chamber
Gray insulated outer box + red built-in finned heating tube bundle; fin design enlarges heat exchange area, improves thermal efficiency, avoids local overheating. Flange outlet connects to ventilation pipes directly.
Centrifugal Fan Assembly
Blue fan shell + copper core driving motor, provides stable air volume and wind pressure to force air flow through the heating core.
Independent Temperature Control Cabinet
